SPECIFICATIONS

Brand Name: OCONA
Hign-concerned Chemical: None
Luminous Flux: 249-2000
Origin: Mainland China
Certification: ce
Certification: ROHS
Certification: UL
Average Life (hrs): 50000
LED Chip Model: COB
Strip type: COB
Power Generation: Always On
Waterproof: No
Is Smart Device: YES
Color Temp(K): RGB Pixel
Occasion: bedroom
LED Chip Brand: Epistar
Power Source: DC
Model Number: RGB Pixel
Specifications (light beads / m): 160
LEDs Number/M: 160
Item Type: Strip
Power Consumption (W/m): 5.76W/m
Voltage: 5V

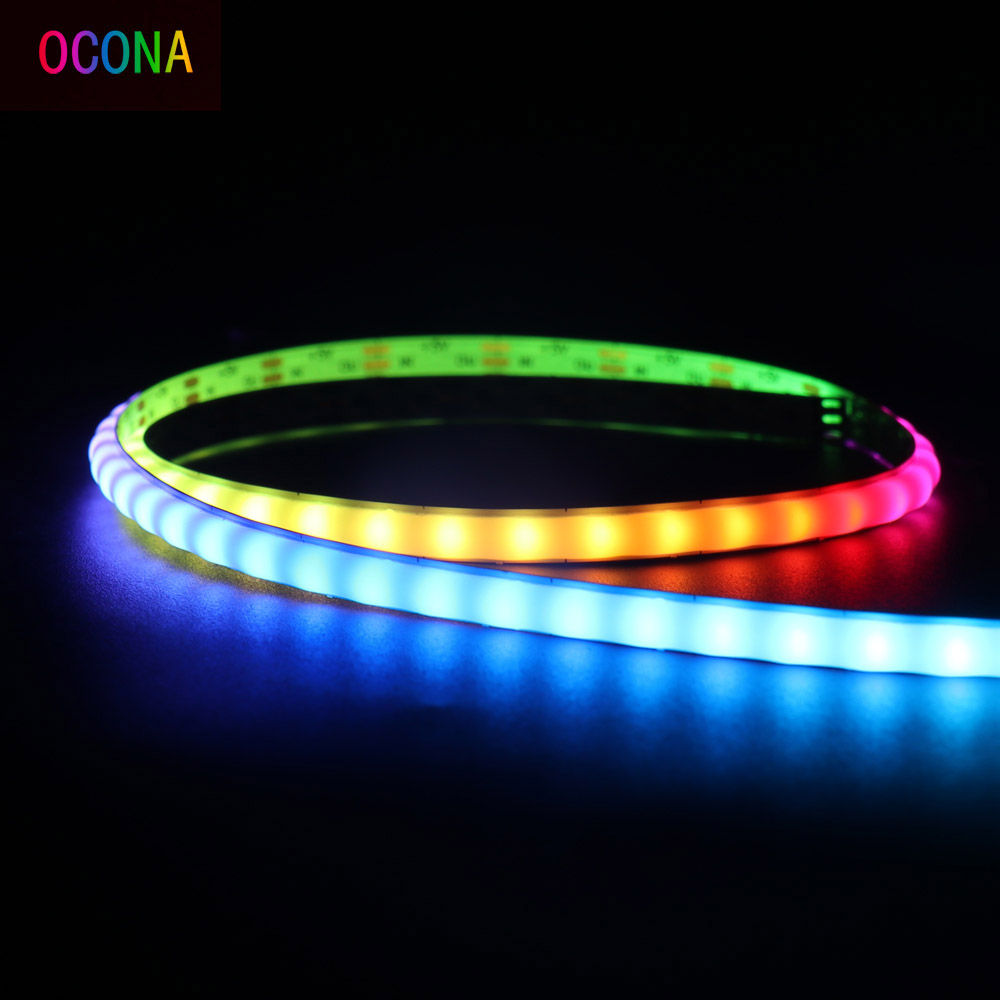

OCONA Individually addressable DC5V COB Smart RGB LED Strip Lights Ribbon 160 LEDs Flexible Changeable Color Dimmable

Features:
LED Strip is made to 0.5m unit, and then solder to long length(manufacture limitation).
Individually addressable, 1 LED, 1 Pixel
LED COB technology, provide high density light without light spot. Much better than SMD LED
Changeable Color, 16M colors accoring to your Smart RGB controller.
extra smart RGB controller needed for color changing,Controllers available in store
Controllers that compatible with WS2812 works with this LED strip.
For 160LEDs/m LED strip, you need 800pixels more LED controller to drive all 5m. The USB controller in this link can only drive 3.75m


Cuttable. every 12.5mm for DC5V
Self-adhesive tape on strip back, easy to mount anywhere
Flexible，bending resistance
Durable Lighting. COB LED strip light service life is more than 50,000 hours
Low DC 5V power, safe to use
CE RoHs certificated
Perfect decoration for Party, Livingroom, Bedroom, KTV, Bar, Gym , Car, Bike, Computer, TV, etc.

Strip Parameters:
Input Voltage: DC 5V/12V
Input Interface: Flat 3Pin Male
Controller to control color, flash mode and brightness :Yes with extra controller, available in store
Power Wattage options(data is based on testing of 0.5m unit):
5mm-5V-100LEDs/m-7.5watt/m
5mm-5V-160LEDs/m-12watt/m
5mm-12V-160LEDs/m-5watt/m
10mm-5V-160LEDs/m-20watt/m
3mm-5V-160LEDs/m-6watt/m
3mm-12V-160LEDs/m-5watt/m
Strip Width: 3mm/5mm/10mm optional, Solder pad on back for 5mm. Solder pad on top for 10mm strip
LED quantity: 100/160 LEDs/Meter, optional
Minimum cut length: every 12.5mm for 160LED version, 10mm for 100LED version
Operation temperature: -10℃-+45℃
Storage temperature: -10℃-+60℃
Beam angle: 180°
Waterproof Level: IP20, not waterproof.

LED controller parameters:
Working Voltage: DC 5V
Body material: PVC
Output Voltage: DC 5V
Maximum pixel: 600 pixels (Only drive 3.75meters for 160LEDs/m LED strip)
