SPECIFICATIONS

Brand Name: NoEnName_Null
Origin: Mainland China
Plug Type: None
Item Type: Lighting Transformers

Product: Constant Current LED Driver

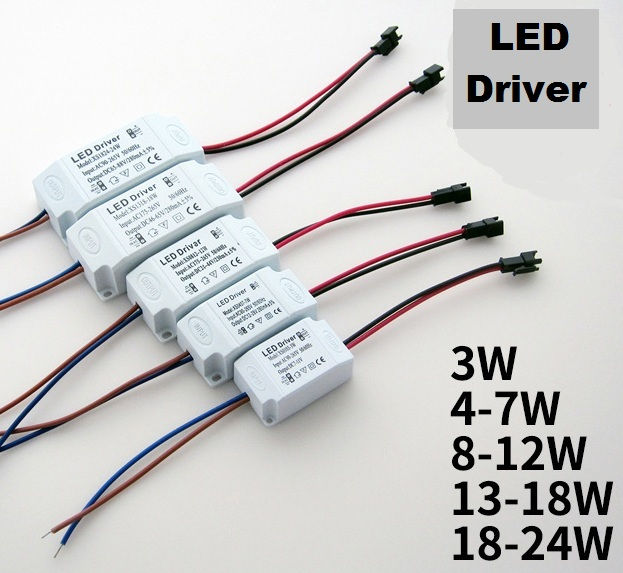

Power model: 1-3W, 4-7W, 8-12W, 13-18W, 18-24W
Input voltage: AC90-265V, 50/60Hz
Efficiency: 90%
Power factor: 0.6
Working temperature: -10 ~ 75℃
Life: 50,000h
Protection: Over-voltage, over-current, over-temperature, overload, short-circuit protection
Application: LED ceiling light, downlight and so on...

Note:
1. How to choose proper LED driver: power model should match, neither too high nor too low.
2. Proper power model depends on output voltage and current, it's ok to have tiny deviation.
3. Choose a suitable connect terminal.

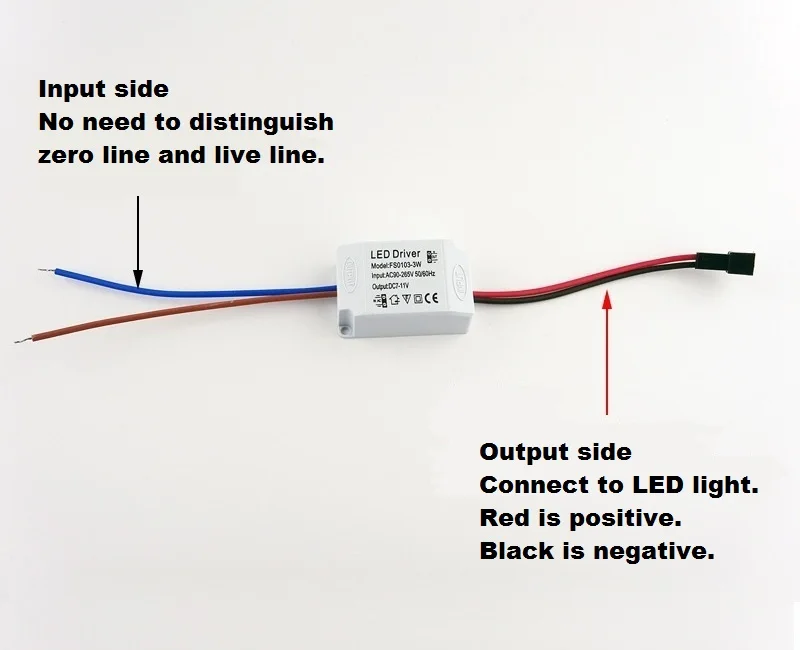

Wiring Method

Product Detailed

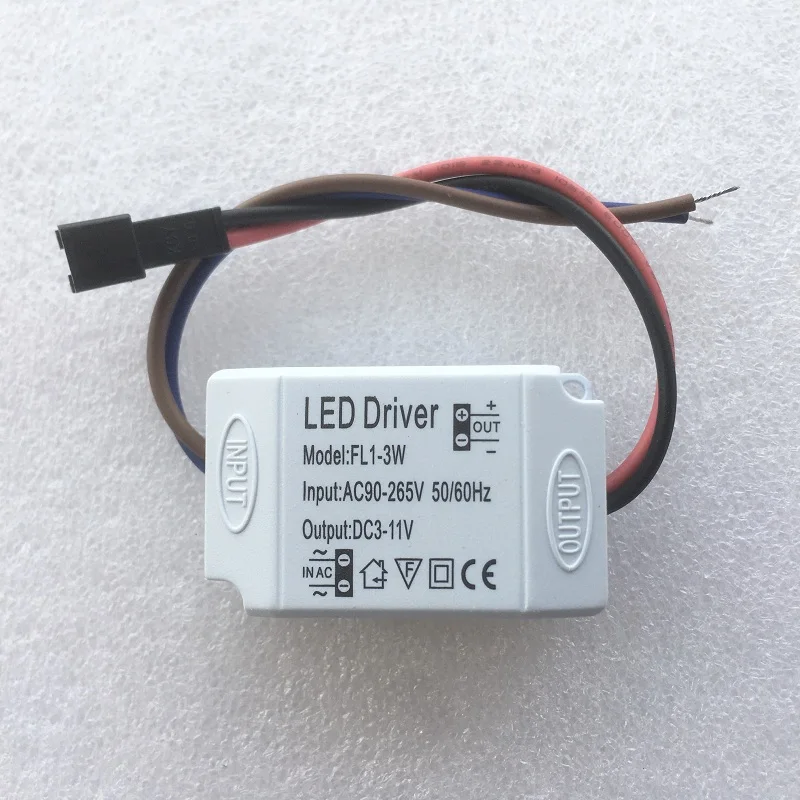

Power: 1-3W
Input voltage: AC90-265V 50/60Hz
Output voltage: DC3-11V
Output current: 250mA±5%
Size: 41*25*17mm

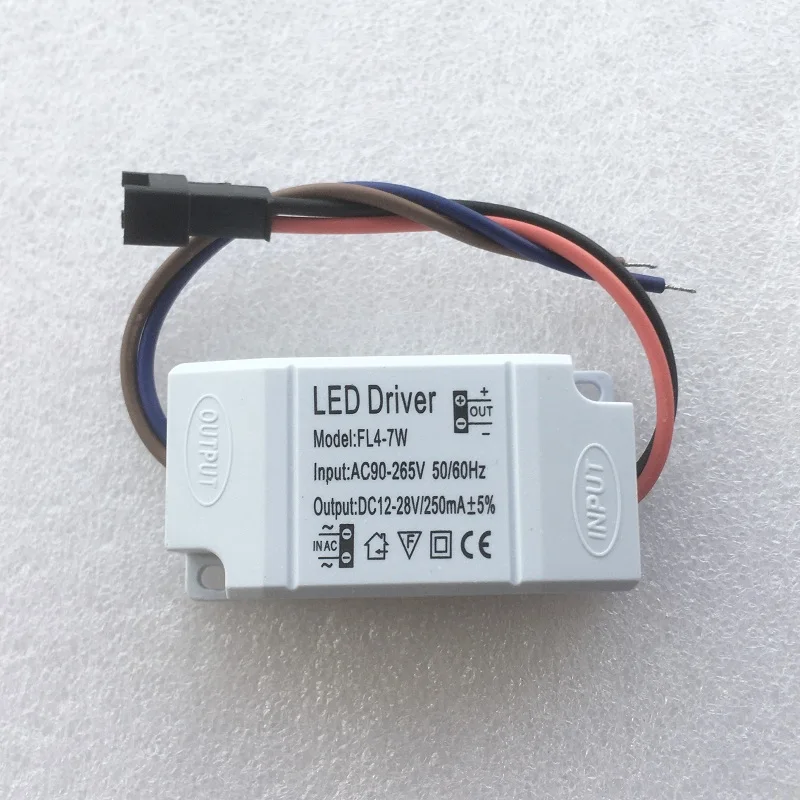

Power: 4-7W

Input voltage: AC90-265V 50/60Hz
Output voltage: DC12-28V
Output current: 250mA±5%
Size: 55*26*20mm

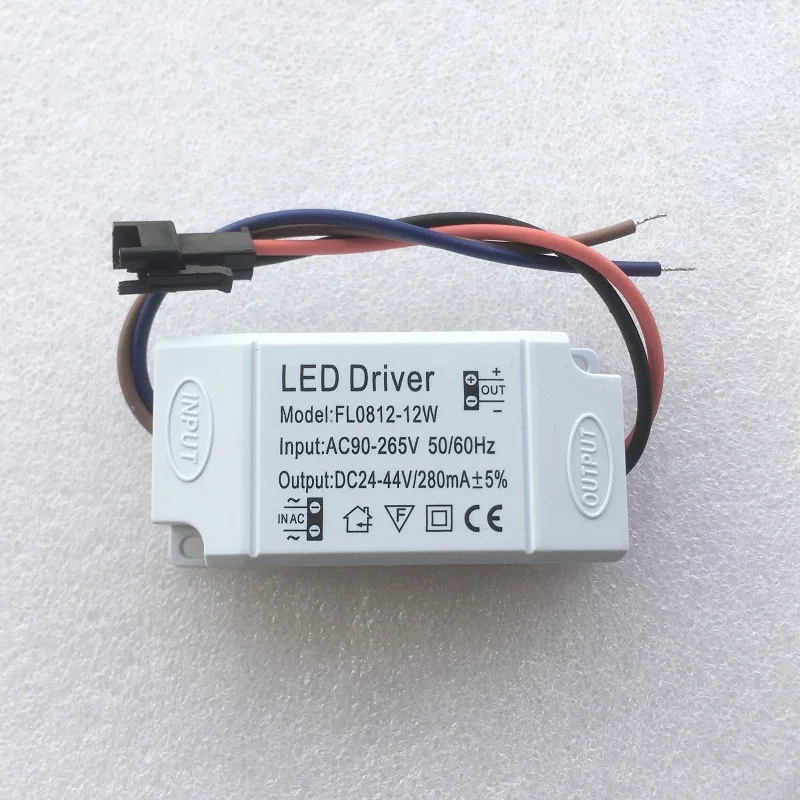

Power: 8-12W

Input voltage: AC90-265V 50/60Hz
Output voltage: DC24-44V
Output current: 280mA±5%
Size: 62*29*20mm

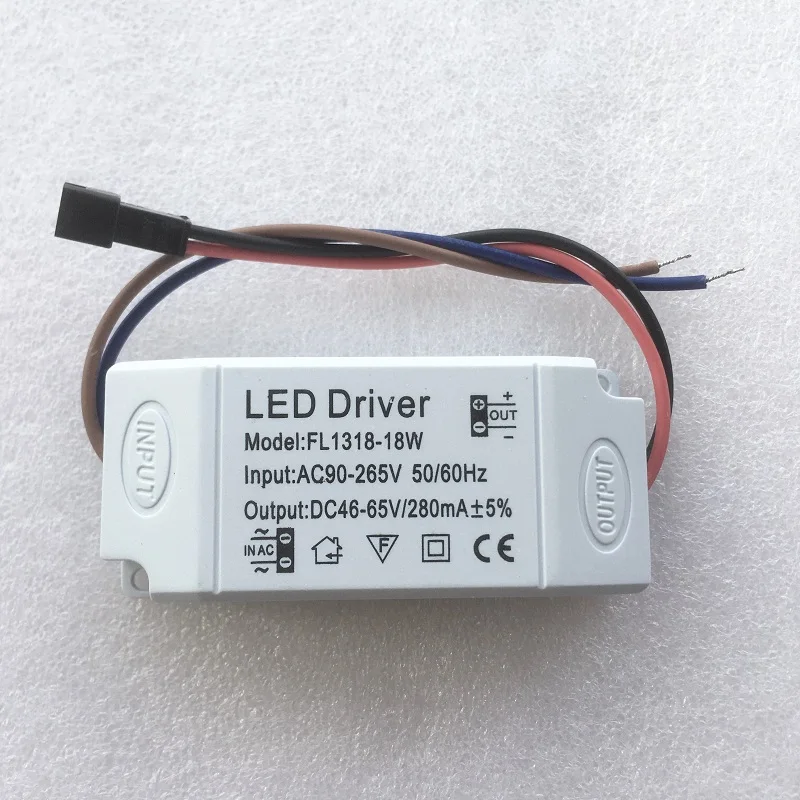

Power: 13-18W

Input voltage: AC90-265V 50/60Hz
Output voltage: DC46-65V
Output current: 280mA±5%
Size: 75*32*21mm

Power: 18-24W

Input voltage: AC90-265V 50/60Hz
Output voltage: DC65-88V</
